General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 326TS Frame, DP

Part#:170042.60

Catalog#:170042.60

Sorry, this item is no longer available

find_replace View Replacement

Superseded

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 326TS Frame, DP

Part#:326TSTDBD6001

Catalog#:GT0080

List Price: $5,138.00

location_on Where to Buy

Obsolete, replaced by B199716.00 - 60HP..3600RPM.326TS.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

Part#:199716.00

Catalog#:199716.00

Sorry, this item is no longer available

find_replace View Replacement

Product

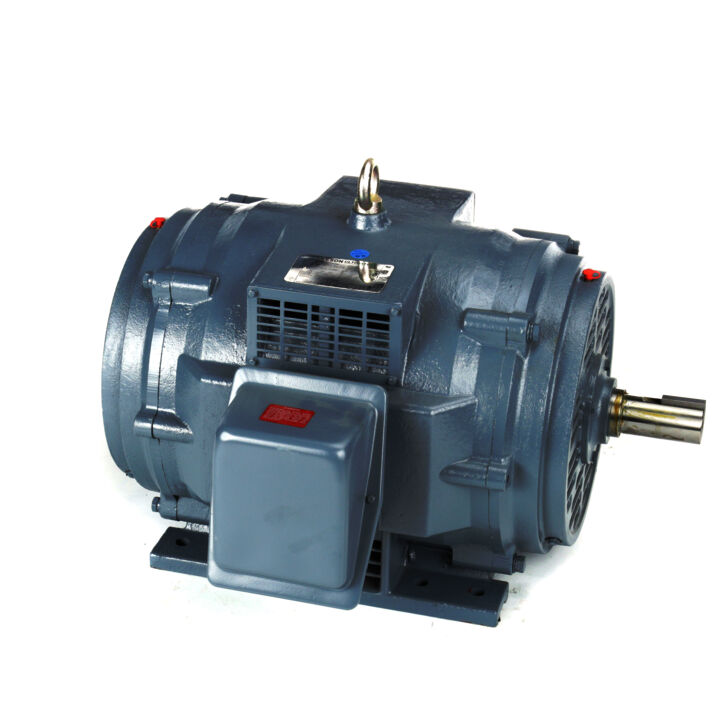

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 326TS Frame, DP

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 326TS Frame, DP

Obsolete, replaced by B199716.00 - 60HP..3600RPM.326TS.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

All Specs

Key Specs

Highlight Differences

Phase

Phase: 3.0

Output HP

Output HP: 60 & 50 Hp

Output KW

Output KW: 45.0 & 37.0 kW

Voltage

Voltage: 208-230/460 & 190/380 V

Voltage: 230/460 & 190/380 V

Speed

Speed: 3555 & 2955 rpm

Speed: 3575 & 2962 rpm

Speed: 3575 & 2980 rpm

Service Factor

Service Factor: 1.15 & 1.15

Frame

Frame: 326TS

Enclosure

Enclosure: Drip Proof

Thermal Protection

Thermal Protection: No Protection

Efficiency

Efficiency: 94.1 & 94.1 %

Efficiency: 93.6 & 93.3 %

Efficiency: 93.6 & 93 %

Ambient Temperature

Ambient Temperature: 40.0 °C

Frequency

Frequency: 60 & 50 Hz

Current

Current: 145-136/68 & 134/67 A

Current: 136/68 & 136/68 A

Current: 134/67 & 134/67 A

Power Factor

Power Factor: 88

Power Factor: 89

Power Factor: 90

Duty

Duty: Continuous

Insulation Class

Insulation Class: F

Design Code

Design Code: A

Design Code: B

KVA Code

KVA Code: H

KVA Code: F

KVA Code: H

Drive End Bearing Size

Drive End Bearing Size: 6312

Drive End Bearing Size: 6212

Opp Drive End Bearing Size

Opp Drive End Bearing Size: 6312

Opp Drive End Bearing Size: 6212

UL: Recognized

CSA

CSA: Y

CE: N

CE: Y

IP Code

IP Code: 23

IP Code: 22

IP Code: 12

Number of Speeds

Number of Speeds: 1

Electrical Type

Electrical Type: Squirrel Cage Inverter Rated

Starting Method

Starting Method: Wye Start Delta Run Or Inverter

Starting Method: Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter

Starting Method: Line Or Inverter

Poles

Poles: 2

Rotation

Rotation: Reversible

Resistance Main

Resistance Main: .098 Ohms

Resistance Main: .1349 Ohms

Resistance Main: .103 Ohms

Mounting

Mounting: Rigid Base

Motor Orientation

Motor Orientation: Horizontal

Drive End Bearing

Drive End Bearing: Ball

Opp Drive End Bearing

Opp Drive End Bearing: Ball

Frame Material

Frame Material: Cast Iron

Frame Material: Rolled Steel

Frame Material: Cast Iron

Shaft Type

Shaft Type: TS

Overall Length

Overall Length: 26.02 in

Overall Length: 28.23 in

Overall Length: N/A

Shaft Diameter

Shaft Diameter: 1.875 in

Shaft Diameter: N/A

Shaft Extension

Shaft Extension: 3.75 in

Shaft Extension: N/A

Assembly/Box Mounting

Assembly/Box Mounting: F1 ONLY

Assembly/Box Mounting: F1/F2 CAPABLE

Inverter Load

Inverter Load: N/A

Inverter Load: CONSTANT 4:1/VARIABLE 10:1

Inverter Load: VARIABLE 10:1

Service Factor

Service Factor: 1.15

Frame Suffix

Frame Suffix: TS

Current

Current: 145.0-136.0/68.0 A

Current: 136.0/68.0 A

Current: 134.0/67.0 A

Synchronous RPM

Synchronous RPM: 3600 & 3000 rpm

Frequency

Frequency: 60 Hz

Speed

Speed: 3555.0 rpm

Speed: 3575.0 rpm

Connection Drawing

Connection Drawing: 004172.01

Connection Drawing: EE7308AA

Connection Drawing: EE7308K_LE

Outline Drawing

Outline Drawing: 16955560

Outline Drawing: SS620744-200

Outline Drawing: SS620243

Voltage

Voltage: 208-230/460 V

Voltage: 230/460 V

Output KW

Output KW: 45.0 kW

Output HP

Output HP: 60 Hp

Frame Size

Frame Size: 326

Torque UOM

Torque UOM: N/A

Torque UOM: LB-FT

Torque UOM: N/A

Efficiency

Efficiency: 94.1 %

Efficiency: 93.6 %
