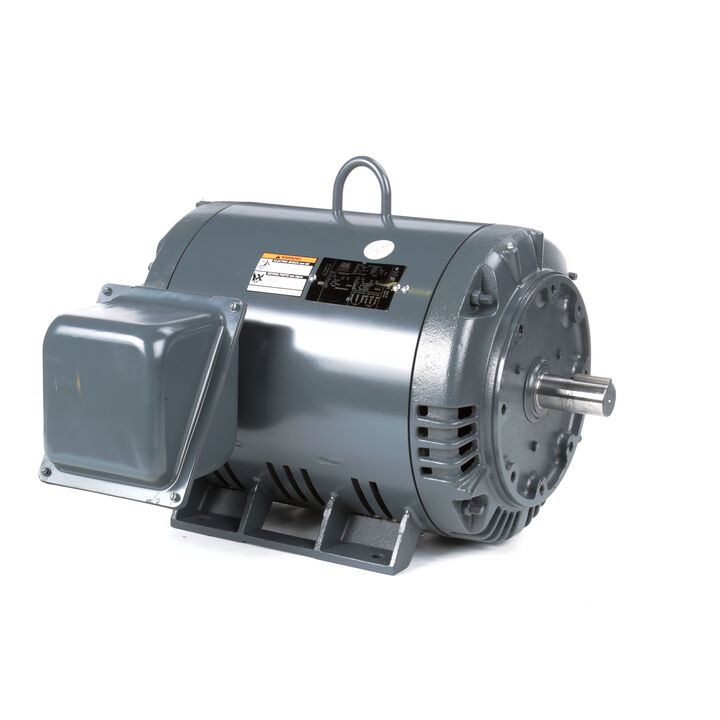

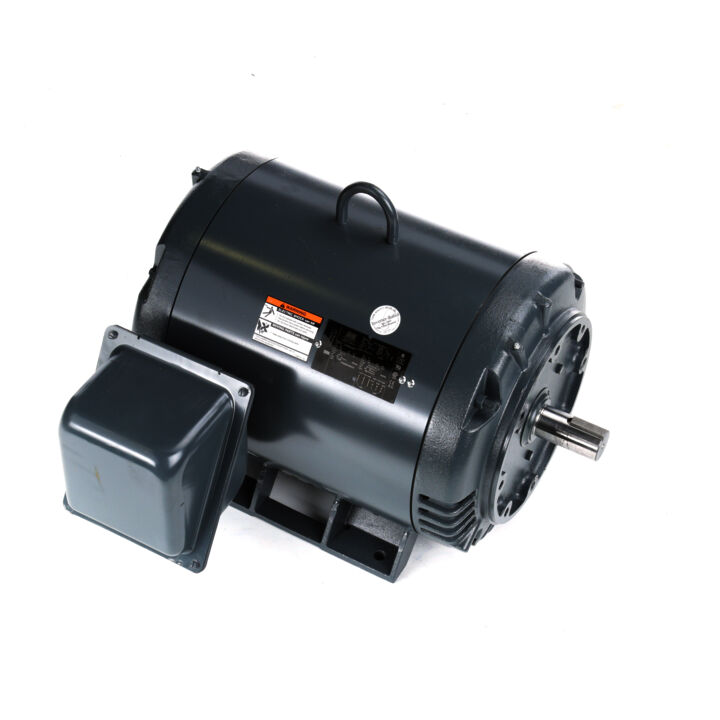

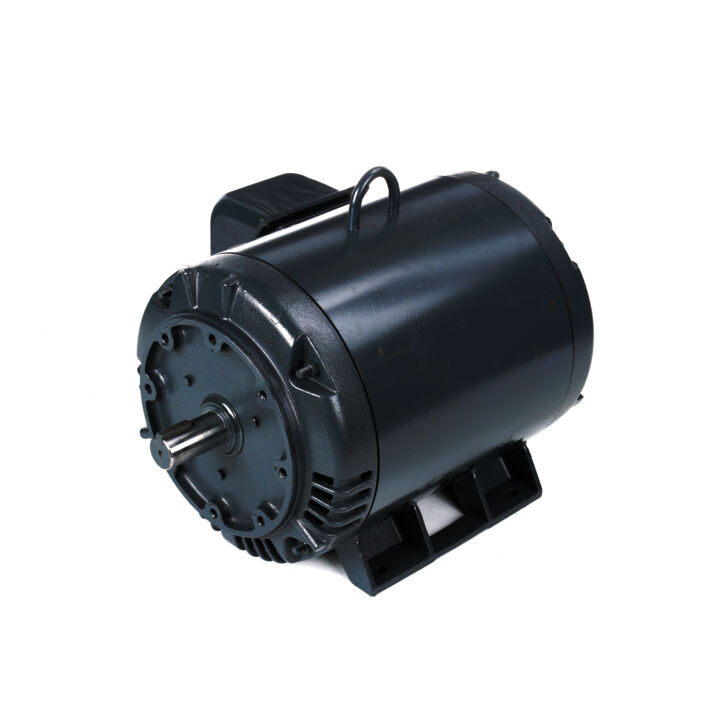

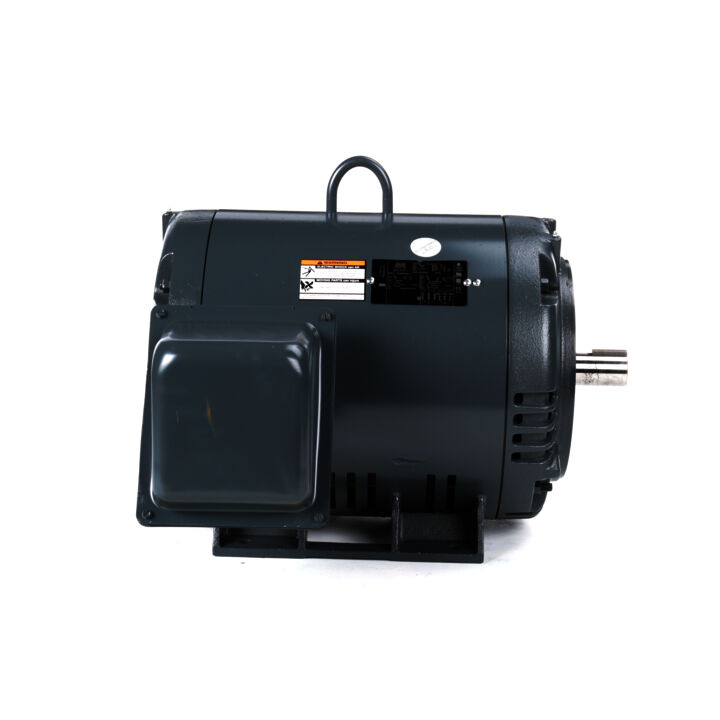

General Purpose Motor, 60 & 60 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190-208/380-415 V, 1800 & 1500 RPM, 364TSC Frame, DP
Resource Center

General Purpose Motor, 60 & 60 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190-208/380-415 V, 1800 & 1500 RPM, 364TSC Frame, DP

Part#: LM32787

Catalog#: LM32787

Model#: SD4B60TSC61Y

Weight: 724 lb

location_on Where to Buy

Key Features

  • Premium efficient ratings
  • Inverter-rated; Nameplated for 50 Hz operation
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Rolled steel and cast iron designs
  • UL recognized and CSA certified

Specifications

Phase Phase: 3 Output HP Output HP: 60 & 60 Hp
Output KW Output KW: 45.0 & 45.0 kW Voltage Voltage: 230/460 & 190-208/380-415 V
Speed Speed: 1785 & 1478 rpm Service Factor Service Factor: 1.25 & 1.15
Frame Frame: 364TSC Enclosure Enclosure: Drip Proof
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 95 & 94.1 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 60 & 50 Hz
Current Current: 140/70 & 167-154/83.5-77 A Power Factor Power Factor: 84
Duty Duty: Continuous Insulation Class Insulation Class: F
Design Code Design Code: B KVA Code KVA Code: G
Drive End Bearing Size Drive End Bearing Size: 313 Opp Drive End Bearing Size Opp Drive End Bearing Size: 311
UL UL: Recognized CSA CSA: Y
CE CE: Y IP Code IP Code: 22
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Induction Run Starting Method Starting Method: Wye Start Delta Run
Poles Poles: 4 Rotation Rotation: Reversible
Resistance Main Resistance Main: .068 Ohms Mounting Mounting: Rigid Base
Motor Orientation Motor Orientation: Horizontal Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: TS Overall Length Overall Length: 26.27 in
Frame Length Frame Length: 15.48 in Shaft Diameter Shaft Diameter: 1.875 in
Shaft Extension Shaft Extension: 3.75 in Assembly/Box Mounting Assembly/Box Mounting: F1 ONLY
Service Factor Service Factor: 1.25 Frame Suffix Frame Suffix: TSC
Current Current: 140.0/70.0 A Synchronous RPM Synchronous RPM: 1800 & 1500 rpm
Frequency Frequency: 60 Hz Speed Speed: 1785 rpm
Connection Drawing Connection Drawing: EE7308AA-LN Outline Drawing Outline Drawing: XH2D1SC2-1548
Voltage Voltage: 230/460 V Output KW Output KW: 45 kW
Output HP Output HP: 60 Hp Frame Size Frame Size: 364
Torque UOM Torque UOM: LB-FT Efficiency Efficiency: 95 %
Packaged Length Packaged Length: 30.00 IN Weight Weight: 724.00 LB
UPC UPC: 691720019108 Packaged Width Packaged Width: 29.00 IN
Country of Origin Country of Origin: United States of America Packaged Height Packaged Height: 24.10 IN
% of Rated Load0%25%50%75%100%115%125%
% of Rated Load: Current (Amps) 0%: 23.00 25%: 29.00 50%: 40.00 75%: 54.00 100%: 70.00 115%: 79.00 125%: 86.00
% of Rated Load: Rated Output (KW) 0%: 1.00 25%: 12.50 50%: 24.00 75%: 35.50 100%: 47.00 115%: 54.00 125%: 59.00
% of Rated Load: Efficiency (%) 0%: 0.0 25%: 89.5 50%: 93.6 75%: 94.5 100%: 95.0 115%: 95.0 125%: 94.5
% of Rated Load: Power Factor (%) 0%: 5.0 25%: 53.0 50%: 73.5 75%: 81.0 100%: 84.0 115%: 84.5 125%: 85.0
% of Rated Load: Speed (RPM) 0%: 1,800 25%: 1,795 50%: 1,792 75%: 1,788 100%: 1,785 115%: 1,782 125%: 1,780
% of Rated Load: Temp. Rise @ FL 0%: 0.0 25%: 0.0 50%: 0.0 75%: 0.0 100%: 30.0 115%: 50.0 125%: 60.0
% of Rated Load: Torque (ft-lbs) 0%: 0.00 25%: 44.00 50%: 88.00 75%: 132.00 100%: 177.00 115%: 203.00 125%: 221.00
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Curvepoint: Pull-Up Current (Amps): 400.00 Current (%): 571.0 Torque (ft-lbs): 315.00 Torque (%): 178.0 Speed (RPM): 900 Rated Output (KW): Power Factor (%): Rated Output (Hp): 60.00
Curvepoint: No Load Current (Amps): 27.50 Current (%): 39.0 Torque (ft-lbs): 0.00 Torque (%): 0.0 Speed (RPM): 1,800 Rated Output (KW): Power Factor (%): Rated Output (Hp): 60.00
Curvepoint: Locked-Rotor Current (Amps): 435.00 Current (%): 621.0 Torque (ft-lbs): 330.00 Torque (%): 186.0 Speed (RPM): 0 Rated Output (KW): Power Factor (%): 28.0 Rated Output (Hp): 60.00
Curvepoint: 1/3 Current (Amps): 425.00 Current (%): 607.0 Torque (ft-lbs): 300.00 Torque (%): 169.0 Speed (RPM): 600 Rated Output (KW): Power Factor (%): Rated Output (Hp): 60.00
Curvepoint: Break-Down Current (Amps): 300.00 Current (%): 429.0 Torque (ft-lbs): 450.00 Torque (%): 254.0 Speed (RPM): 1,700 Rated Output (KW): Power Factor (%): 62.0 Rated Output (Hp): 60.00
Curvepoint: Full Load Current (Amps): 74.00 Current (%): 106.0 Torque (ft-lbs): 177.00 Torque (%): 100.0 Speed (RPM): 1,785 Rated Output (KW): Power Factor (%): Rated Output (Hp): 60.00
Curvepoint: 2/3 Current (Amps): 350.00 Current (%): 500.0 Torque (ft-lbs): 350.00 Torque (%): 198.0 Speed (RPM): 1,200 Rated Output (KW): Power Factor (%): Rated Output (Hp): 60.00

Efficiency

CountryComplies with standards
Country: United States
Complies with standards: check_circle
Country: Canada
Complies with standards: cancel
Country: Mexico
Complies with standards: check_circle
Country: Australia
Complies with standards: check_circle
Country: Brazil
Complies with standards: check_circle
Country: Chile
Complies with standards: check_circle
Country: China
Complies with standards: check_circle
Country: Europe
Complies with standards: cancel
Country: Japan
Complies with standards: check_circle
Country: New Zealand
Complies with standards: check_circle
Country: Saudi Arabia
Complies with standards: check_circle
Country: South Korea
Complies with standards: check_circle
